Refrigeration Smart Dryer
Performance that Reflects
Our Commitment to You
Moisture stands out as the predominant contaminant posing a threat to your compressed air system. This underscores the crucial role that dryers play in any air treatment process. If you're questioning the significance, thinking it's just water, it's essential to delve further as presence of water can seriously wreak havoc on your compressed air system, downstream equipment, and, most importantly, on the final products.
Why Industry Needs Air Dryer?
-
The requirements of modern industry for compressed air can be divided into the following aspects:
1. Pressure and flow requirements;
2. Requirements for dryness (i.e. water content or dew point temperature);
3. Cleanliness requirements (relatively complex, including: solids, oil mist, microorganisms, harmful gases, etc.) -
The filter plays a key role in the compressed air drying and purification system. The use of different filters can remove oil (including liquid, gas), solid impurities, microorganisms, harmful gases and other pollutants in the compressed air. In the compressed air drying and purification system, filters exist everywhere. In industrial production, the filter used by the compressed air system is often divided into several categories according to its use: oil removal filter, dust removal filter, sterilization filter and special filter
-
The requirement of dryness is to remove the moisture in the compressed air, and it needs to be dired by a compressed air dryer. According to the drying principle, it is divided into a refrigeration dryer, an adsorption dryer, or a combination of refrigerated and adsorption dryer.
-
Compressed air is an important power source widely used in industrial fields, and is the second largest power source after electricity. Compressed air comes from the atmosphere, which contains a lot of dust, water vapor, impurities and so on. Unpurified compressed air will seriously wear pneumatic equipment, and cause blockage and corrosion of valves, pipelines, etc. It causes damage to production equipment and scrap of products, affecting normal production. Therefore, it is necessary to purify the compressed air it is essential. With many years of professional experience, Epsea not only focus on the research and development and equipment manufacturing in the field of compressed air purification, but also through our understanding and summary of the manufacturing industry, we can provide users in various industries with more economical and
efficient comprehensive compressed air purification solutions.
Impurities & Quality Grades According To Iso 8573-1: 2010 Grade
| Level | Compressed Air purity level of particles | Humidity | Maximum Oil Content | ||
| Grade A | Maximum particle size per cubic meter as a function of particle size, db |
Maximum Pressure Dew Point | |||
| 0.1um<0.5um | 0.5um <1.0um | 1pm<15.0um | |||
| 0 | In accordance by the the requirements with the requirements equipment user or are higher specified supplier, than the first | User Specified | User Specified | ||
| 1 | <20000 | <400 | <10 | -70°C & better | <0.01mg/m |
| 2 | <400000 | <6000 | <100 | -40°C & better | <0.1mg/m |
| 3 | - | <90000 | <1000 | -20°C & better | <1mg/M3 |
| 4 | - | A/R | <10000 | +3°C & better | <5mg/M3 |
| 5 | - | A/R | <100000 | +7°C & better | - |
| 6 | - | - | - | +10°C & better | - |
| Grades 6 to 7 depend on maximum particle size and maximum density CLASS6:d≤0.5um and density≤5mg/m³ CLASS7:≤1.0um and density≤10mg/m³ | Grades 7 to 9 depend on the liquid water content contained CLASS7:CW≤0.5G/M³ CLASS8:0.5G/M³>CW≤5G/M³ CLASS9:0.5G/M³ | ||||
Aries Pro Air Dryer Range
SMART DRY
TUBE TYPE EXCHANGER
- Intake Temperature: 10 to 38 Deg C
- Flow: Up to 780 m3/hr or 500 CFM
- Dew Point: 2 to 10 Deg C
- Pressure Rating: up to 10 bar
SMART DRY PLUS
PLATE TYPE EXCHANGER
- Intake Temperature: 10 to 60 Deg C
- Flow: Up to 1920 m3/hr or 1130 CFM
- Dew Point: 2 to 7 Deg C
- Pressure Rating: up to 10 bar
SMART DRY ULTRA
PLATE TYPE EXCHANGER - HIGH PRESSURE
- Intake Temperature: 10 to 60 Deg C
- Flow: Up to 390 m3/hr or 230 CFM
- Dew Point: 2 to 10 Deg C
- Pressure Rating: up to 16 bar
SMART DRY MAGNUM
PLATE TYPE EXCHANGER - HIGH PRESSURE
- Intake Temperature: 10 to 60 Deg C
- Flow: Up to 390 m3/hr or 230 CFM
- Dew Point: 2 to 10 Deg C
- Pressure Rating: up to 30 bar
-
R410a refrigerant is used, which is more efficient than R22 and does not damage the ozone layer
-
The smart energy hot gas bypass control system can maximize the cooling capacity of the combination, and accurately control the excess cooling capacity at the same time, that is, to ensure the dew point and not to block the ice.
-
The specially designed vertical reverse flow heat exchanger can effectively control the pressure drop, so that the pressure drop is less than 0.2Bar, which can save the power consumption of the system for the user's direct connection.
-
Aluminum alloy materials used in the heat exchange system have good corrosion resistance, and the surface volume of aluminum is easy to produce A layer of dense and solid AL2 03 protective film, which can be very good. Protect the substrate from corrosion, effectively protect the compressed air into the heat exchange system will not produce secondary contamination.
-
Three-in-one high efficiency heat exchange system is equipped with a reverse flow heat exchanger with larger surface volume, which should be relaxed for various high temperature working conditions and more stable dew point.
-
a. Self-developed refrigerated air dryer specially used micro-computer control device, which can control the start and stop of dryer and high temperature protection according to the change of system load; b. Self-designed cooling condenser, thickened copper tube and hydrophilic aluminum foil, combined with famous brand high air volume external rotary blower, better heat dissipation effect and more durable; c. The whole series adopts the joint venture brand refrigerant compressor, based on the various machine types, choose the most suitable high efficiency rotary or vortex compressor.
6 Core component advantages 6 promising guarantees
Our Services
Daltech Engineering's service department is committed to delivering unparalleled support and maintenance solutions for its clients. With a team of skilled technicians and engineers, the service department ensures prompt and efficient handling of equipment issues and repairs. The department's customer-centric approach focuses on exceeding client expectations, providing timely assistance, and minimizing downtime. Daltech Engineering's service professionals are equipped with the latest tools and technology to guarantee optimal performance and reliability of the company's products. Through a proactive and responsive service model, the department plays a crucial role in fostering long-term client satisfaction and loyalty.
Minimum Downtime
Increased efficiencies, maximum productivity and minimum downtime
Pocket-Friendly
The most pocket-friendly machine on planet earth when you require long-term service
Reduced carbon footprint
Requires Less KW power from your air compressor making it more greener than ever
Round the Clock Operation
Regional partner support along with FREE Remote connectivity software offers 24*7 operation

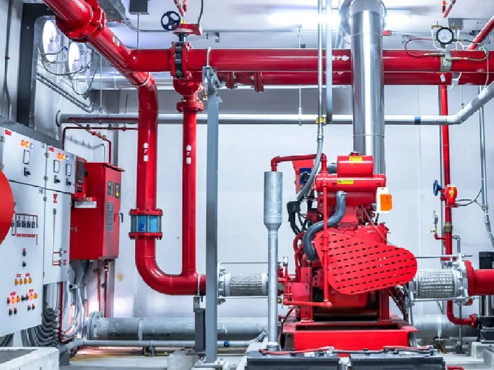

Our Applications
“Customer delight is our greatest achievement – your happiness is my ultimate goal.”
With our vision to “be the preferred brand for air treatment and gas products”, hence at DALTECH Engineering, it becomes our utmost priority to secure your gas needs in terms of 24*7 operation.
Our regional partners are our strength and hence we have trained them accurately to make corrective actions during time of maintenance. We have onbarded experienced team members and regional partners whom we periodically train them on customer engagement, customer relations and customer loyalty that helps us to be stay closer to you and show our technical strengths with a reasonable product pricing so that we take care of our employees and be able to run the business also.
-CEO Daltech Engineering Private Limited
