Refrigeration Smart Dryer

Performance that Reflects

Our Commitment to You

Moisture stands out as the predominant contaminant posing a threat to your compressed air system. This underscores the crucial role that dryers play in any air treatment process. If you're questioning the significance, thinking it's just water, it's essential to delve further as presence of water can seriously wreak havoc on your compressed air system, downstream equipment, and, most importantly, on the final products.

Why Industry Needs Air Dryer?

The requirements of modern industry for compressed air can be divided into the following aspects:
1. Pressure and flow requirements;
2. Requirements for dryness (i.e. water content or dew point temperature);
3. Cleanliness requirements (relatively complex, including: solids, oil mist, microorganisms, harmful gases, etc.)
The filter plays a key role in the compressed air drying and purification system. The use of different filters can remove oil (including liquid, gas), solid impurities, microorganisms, harmful gases and other pollutants in the compressed air. In the compressed air drying and purification system, filters exist everywhere. In industrial production, the filter used by the compressed air system is often divided into several categories according to its use: oil removal filter, dust removal filter, sterilization filter and special filter
The requirement of dryness is to remove the moisture in the compressed air, and it needs to be dired by a compressed air dryer. According to the drying principle, it is divided into a refrigeration dryer, an adsorption dryer, or a combination of refrigerated and adsorption dryer.
Compressed air is an important power source widely used in industrial fields, and is the second largest power source after electricity. Compressed air comes from the atmosphere, which contains a lot of dust, water vapor, impurities and so on. Unpurified compressed air will seriously wear pneumatic equipment, and cause blockage and corrosion of valves, pipelines, etc. It causes damage to production equipment and scrap of products, affecting normal production. Therefore, it is necessary to purify the compressed air it is essential. With many years of professional experience, Epsea not only focus on the research and development and equipment manufacturing in the field of compressed air purification, but also through our understanding and summary of the manufacturing industry, we can provide users in various industries with more economical and
efficient comprehensive compressed air purification solutions.

Impurities & Quality Grades According To Iso 8573-1: 2010 Grade


        Level
        Compressed Air purity level of particles
        Humidity
        Maximum Oil Content



        Grade A
        Maximum particle size per cubic meter as a function

        of particle size, db
        Maximum Pressure Dew Point



        0.1um<0.5um
        0.5um <1.0um
        1pm<15.0um




        0
        In accordance by the the requirements with the requirements equipment user or are higher specified supplier, than the first
        User Specified
        User Specified


        1
        <20000
        <400
        <10
        -70°C & better
        <0.01mg/m


        2
        <400000
        <6000
        <100
        -40°C & better
        <0.1mg/m


        3
        -
        <90000
        <1000
        -20°C & better
        <1mg/M3


        4
        -
        A/R
        <10000
        +3°C & better
        <5mg/M3


        5
        -
        A/R
        <100000
        +7°C & better
        -


        6
        -
        -
        -
        +10°C & better
        -



        Grades 6 to 7 depend on maximum particle size and maximum density CLASS6:d≤0.5um and
density≤5mg/m³ CLASS7:≤1.0um and
density≤10mg/m³
        Grades 7 to 9 depend on the liquid water content contained CLASS7:CW≤0.5G/M³ CLASS8:0.5G/M³>CW≤5G/M³ CLASS9:0.5G/M³





Aries Pro Air Dryer Range

SMART DRY

TUBE TYPE EXCHANGER

Intake Temperature: 10 to 38 Deg C
Flow: Up to 780 m3/hr or 500 CFM
Dew Point: 2 to 10 Deg C
Pressure Rating: up to 10 bar

Learn more

SMART DRY PLUS

PLATE TYPE EXCHANGER

Intake Temperature: 10 to 60 Deg C
Flow: Up to 1920 m3/hr or 1130 CFM
Dew Point: 2 to 7 Deg C
Pressure Rating: up to 10 bar

Learn more

SMART DRY ULTRA

PLATE TYPE EXCHANGER - HIGH PRESSURE

Intake Temperature: 10 to 60 Deg C
Flow: Up to 390 m3/hr or 230 CFM
Dew Point: 2 to 10 Deg C
Pressure Rating: up to 16 bar

Learn more

SMART DRY MAGNUM

PLATE TYPE EXCHANGER - HIGH PRESSURE

Intake Temperature: 10 to 60 Deg C
Flow: Up to 390 m3/hr or 230 CFM
Dew Point: 2 to 10 Deg C
Pressure Rating: up to 30 bar

Learn more

Smart Dry Product Overview

The ARIES PRO Smart Dry series features a tube-type exchanger dryer design, incorporating interlocks of premium style and quality. Specifically crafted for the Indian market, it caters to those who prefer cost-effective solutions while building a fleet of dryers.

Working Principle

The amount of water vapor in the compressed air is determined by the water content of the compressed air. Under the condition of keeping the compressed air pressure basically unchanged, when the temperature drops, the water holding capacity of the air also decreases, and the water that was originally gaseous will become liquid. The refrigerated dryer is based on this principle of dehumidification, using a refrigeration device to cool the compressed air to a certain dew point temperature, so that the gaseous water is condensed into a liquid state. Then through the separator, the gas and liquid are separated and the water is discharged from the automatic drain, so that the compressed air is dried. The refrigeration and heat dissipation device of the air-cooled refrigeration dryer is an air-cooled radiator. The high-pressure part of the refrigeration system is cooled by a fan and taken away with the air volume blown by the fan.

Product Features

In s strict accordance with ISO9001, GB150 standards, ISO7183 cold dryer standards, QS, pressure vessel inspection specifications for design, manufacturing, production and testing to ensure safe and reliable operation of products;
The heat exchanger and air-cooled condenser are independently produced, using hydrophilic aluminum foil, which has high heat exchange efficiency
No basic installation requirement, can be installed under reasonable ambient temperature
Using external rotor fan, largeairfloww and long life
Refrigeration parts and control components adopt international high-quality brands to increase service life
Adopt brand-new fully enclosed refrigeration compressor, long life, low noise, reliable performance and high energy efficiency
The equipment structure design is reasonable, adopting the golden ratio design concept and super three-dimensional structure;
High-efficiency gas-water separation device with excellent automatic drain valve, continuously and stably drain the condensate out of the machine;

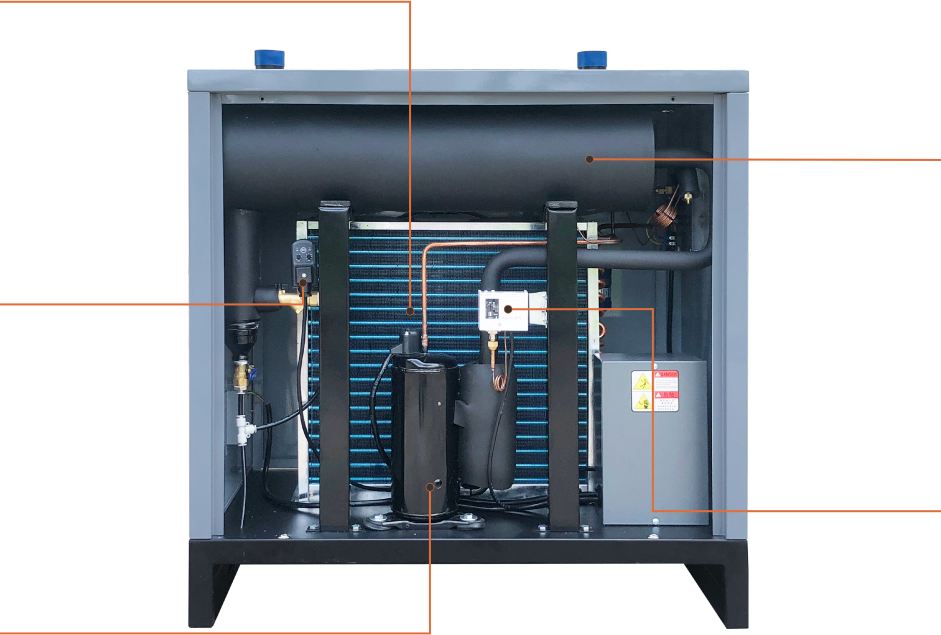

Full-capacity air-cooled condenser:

Independent production, using hydrophilic aluminum foil and high-efficiency copper tube, heat exchange efficiency high.

Evaporator:

The evaporator adopts high-quality copper tube and hydrophilic aluminum foil fins to assist special process design to reduce the cooling power consumption of condensate.

Pressure Switch:

Accurately control the condensing pressure to ensure efficient operation of the refrigeration system.

Compressor:

Adopt new fully enclosed refrigeration compressor, long life, low noise, reliable performance and high energy efficiency.

Electronic drain:

Adjustable drainage frequency to achieve drain the condensation water completely.

Smart Dry Technical Specifications

For model selection go to link

Smart Dry Plus Product Overview

A very special product ARIES PRO Smart Dry Plus comes with Aluminium plate type heat exchanger, so there is no corrosion! The exchanger efficiency is higher than other designs and hence shows a better performance, even when it comes to handling higher temperatures. The product comes with standard user-friendly smart LED controller.

Working Principle

The amount of water vapor in compressed air is determined by the water content of the compressed air. Under the premise of keeping the pressure of compressed air basically unchanged, reducing the temperature of compressed air can reduce the content of water vapor in compressed air, and the excess water vapor will precipitate into liquid droplets. According to the water saturation and the relationship between steam pressure and temperature, the refrigerant dryer is used to cool the compressed air to a certain temperature, precipitate the contained water condensed into droplets, separated and collected by the gas-water separator, the drainer will discharge the water, so as to dry the compressed air.

Product Features

Stainless steel plate heat exchanger, high efficiency, low dew point;
Pry-mounted integrated design, convenient installation and maintenance, worry-free use;
The standard with a cyclone gas-water separator and three high efficiency filter, effectively filter oil and impurities

3 in Heat Exchanger System

CHOOSE THE RIGHT MODEL BY TAKING THE TABLE INTO CONSIDERATION

The air flowunder different working conditions can be obtained by multiplying the nominal flow in the specification parameter table with the correction coefficient, and the actual dryer capacity = nominal flow ×(coefficient C1× coefficient C2× coefficient C3× coefficient C4). When the actual correction factor is greater than 1, the intake flow selection shall prevail

Smart Dry Plus Technical Specifications

For model selection go to link

Smart Dry Ultra Product Overview

Working Principle

The amount of water vapor in compressed air is determined by the water content of the compressed air. Under the premise of keeping the pressure of compressed air basically unchanged, reducing the temperature of compressed air can reduce the content of water vapor in compressed air, and the excess water vapor will precipitate into liquid droplets. According to the water saturation and the relationship between steam pressure and temperature, the refrigerant dryer is used to cool the compressed air to a certain temperature, precipitate the contained water condensed into droplets, separated and collected by the gas-water separator, the drainer will discharge the water, so as to dry the compressed air. Through the preliminary filtration of the C-class filter and the precise filtration of the cyclone gas-liquid separator/(T), A, AA class filters, we can get a cleaner air source without oil and water.

Product Features

Stainless steel plate heat exchanger, high efficiency, low dew point;
Pry-mounted integrated design, convenient installation and maintenance, worry-free use;
The standard with a cyclone gas-water separator and three high efficiency filter, effectively filter oil and impurities

b Air outlet

a Air inlet

Class A filter.

Filtration precision ≤0.01μm Oil content≤0.01ppm

Class AA Filter.

Filtration precision ≤ 0.01μm Oil content≤0.001ppm

Class T filter.

Filtration precision ≤ 1μm Oil content ≤ 1ppm

Cyclone gas-liquid separator. Removal of 99% liquid water

Air system flow Below 1.6 MPa :

Compressed Air with high temperature and high humidity → Cyclone gas-liquid separator → ⑮ T-class filter → ① Pre-cooling retemperer (hot side) → ③ evaporator → ② gas-liquid separator → ① Pre-cooled thermostat (cold side) → ⑯A-class filter → ⑰ AA-class filter → Dry, clean compressed gas

Air system flow Above 1.6MPa:

high temperature and high humidity compressed air → ⑮ C-class filter → ⑮T-class filter → ①Pre-cooling retemperer (hot side) → ③ evaporator → ② gas-liquid separator → ① Pre-cooled thermostat (cold side) → ⑯ A-class filter → ⑰ AA-class filter → dry, clean compressed gas

Main flow of refrigeration system

⑤ Refrigeration compressor exhaust → ⑦ condenser → ⑧ refrigerant filter → ⑨ throttling device (capillary or expansion valve) → ③ evaporator → ⑥ liquid reservoir → ⑤ refrigeration compressor suction end → ⑤ refrigeration compressor exhaust end

The bypass process

⑤ Refrigeration compressor exhaust end → ⑩ hot gas bypass valve → ⑥ liquid reservoir → ⑤ refrigeration compressor suction end → ⑤ refrigeration compressor exhaust end

1 Pre-cooling retemperer (SS M.O.C.)
2 Cyclone gas-liquid separator (SS M.O.C.)
3 Evaporator
4 Automatic Drain
5 Refrigeration compressor
6 Liquid Reservoir
7 Air-cooled condenser (Copper jacket FIN type)
8 Refrigerated filter
9 Throttling device
10 Hot gas bypass valve
11 High-pressure refrigerated meter
12 Low-pressure refrigerated meter
13 Pressure switch
14 T-class filter
15 A-claas filter
16 AA-class filter

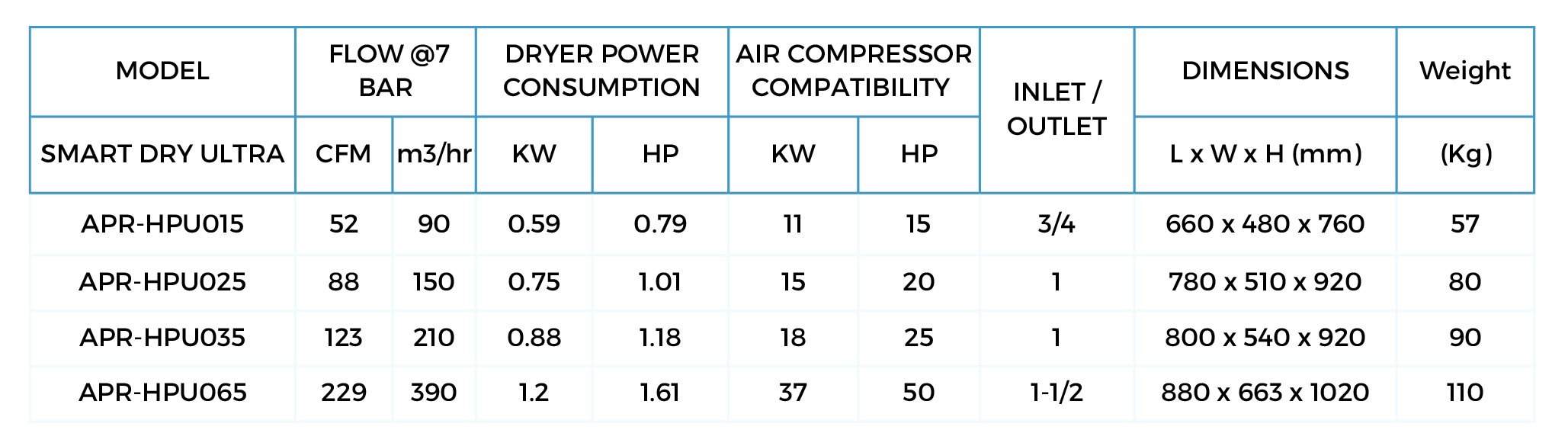

Smart Dry Ultra Technical Specifications

For model selection go to link

Smart Dry Magnum Product Overview

Working Principle

ARIESPRO series, high pressure dryer series i.e. SMART DRY MAGNUM is one of it’s kind. The moisture content in compressed air is determined by the amount of water present in it. By maintaining the pressure of compressed air while decreasing its temperature, the moisture content in the air can be reduced. Excess moisture condenses into liquid droplets, a process utilized by refrigerated dryers. These dryers employ refrigeration systems to cool the compressed air to a specific temperature, causing water vapor to precipitate and collect as droplets. The separated water is then drained out, effectively drying the compressed air. Further drying is achieved by passing the air through an oil-water separator and a C-class water separator. Prior to this, the air undergoes preliminary filtration through the oil-water separator and filter, followed by precision filtration of T and A-class filters. This process ensures a cleaner, oil-free, and dry air source.

Smart Dry Magnum Features

Aesthetically skid-mounted C, T, A, AA level filter, directly connected to the gas source
No need for any other additional filters
Making pipeline connection is very convenient
Compact structure
Easy to move

Two-level filtration of compressed air, so that the quality of the obtained air source is high;

Reasonable structural arrangement minimises the loss of system energy and improves the efficiency of refrigeration and drying;

Smart Dry Magnum Advantages

Stable dew point, High efficiency filtration, high quality gas delivered with assurance

Smart Dry Magnum Applications

The main application areas are Laser cutting, High-pressure blowing and industries that require pressures up to 30 bar

Air system process:

High temperature and high humidity compressed air → ① C-filter → ② pre-cooler shell stroke → ③ evaporator → ④ distributor → ② pre-cooler tube stroke → ⑯ T filter → ⑰ A filter → ⑱ AA filter → Dry, clean compressed finished gas

Refrigeration system main flow:

⑤ Refrigeration compressor discharge end → ⑦ Condenser → ⑧ Refrigerant filter → ⑨ Throttling device (capillary tube or expansion valve) → ③ Evaporator → ⑥ Liquid storage → ⑤ Refrigeration compressor suction side → ⑤ Refrigeration compressor discharge side

Bypass flow:

⑤ refrigeration compressor discharge side →⑩ hot gas bypass valve →⑥ liquid storage →⑤ refrigeration compressor suction side →⑤ refrigeration compressor discharge side

Smart Dry Magnum Ultra Technical Specifications

For model selection go to link

Selecting the Air Dryer for your application

C1: Compressed air inlet temperature correction factor

Intake temperature (°C)	32	35	38	40	42	45	50	55	60
Correction factor	1.53	1.39	1,25	1.20	1.06	1.00	0,83	0.68	0,58

C2: Intake pressure correction factor

Intake pressure, bar	4	5	6	7	8	9	10
Correction factor	0,76	0.86	0,93	1.00	1.04	1.07	1.12

C3: Pressure dew point correction factor

Pressure Dew point (°C)	3	7	10
Correction factor	0,81	1.00	1.17

C 4: Ambient temperature correction coefficient

Ambient temperature (°C)	25	30	35	38	40	45
Correction factor	1.10	1.06	1.03	1.00	0.96	0.71

The final air flow per above required working conditions can be obtained by:

Multiply the nominal flow in the below specification parameter table with the correction coefficient, and the actual dryer capacity = Nominal flow *(coefficient C1x coefficient C2x coefficient C3x coefficient

Extreme Speed

Pre-cooling System The unique structural design of the precooling channel ensures that the compressed air at the entrance is fully and quickly cooled. Ultra-low pressure loss makes the refrigeration system cycle run more efficiently

High Efficiency

Evaporation System The improved evaporation channel is developed so that the heat of the compressed air is fully absorbed by the liquid refrigerant. Absorbed, the refrigerant is completely "vaporized" back to the compressor suction port for the refrigeration system. In a cycle, the gaseous water in the compressed air is cooled and a large amount of liquid water is precipitated

Dual Stage

Water Separator System Efficient gas-water separation contains crude. The two-channel structure is compressed into the water distributor. The air flow rate is reduced, the coarse water separation structure will completely separate a large number of liquid water, and the fine water separation. The structure will again separate some of the liquid water droplets carried by the airflow fluid drag force, ensuring that. Maximum separation efficiency, thus achieving a more stable dew point

R410a refrigerant is used, which is more efficient than R22 and does not damage the ozone layer
The smart energy hot gas bypass control system can maximize the cooling capacity of the combination, and accurately control the excess cooling capacity at the same time, that is, to ensure the dew point and not to block the ice.
The specially designed vertical reverse flow heat exchanger can effectively control the pressure drop, so that the pressure drop is less than 0.2Bar, which can save the power consumption of the system for the user's direct connection.
Aluminum alloy materials used in the heat exchange system have good corrosion resistance, and the surface volume of aluminum is easy to produce A layer of dense and solid AL2 03 protective film, which can be very good. Protect the substrate from corrosion, effectively protect the compressed air into the heat exchange system will not produce secondary contamination.
Three-in-one high efficiency heat exchange system is equipped with a reverse flow heat exchanger with larger surface volume, which should be relaxed for various high temperature working conditions and more stable dew point.
a. Self-developed refrigerated air dryer specially used micro-computer control device, which can control the start and stop of dryer and high temperature protection according to the change of system load; b. Self-designed cooling condenser, thickened copper tube and hydrophilic aluminum foil, combined with famous brand high air volume external rotary blower, better heat dissipation effect and more durable; c. The whole series adopts the joint venture brand refrigerant compressor, based on the various machine types, choose the most suitable high efficiency rotary or vortex compressor.

6 Core component advantages 6 promising guarantees
